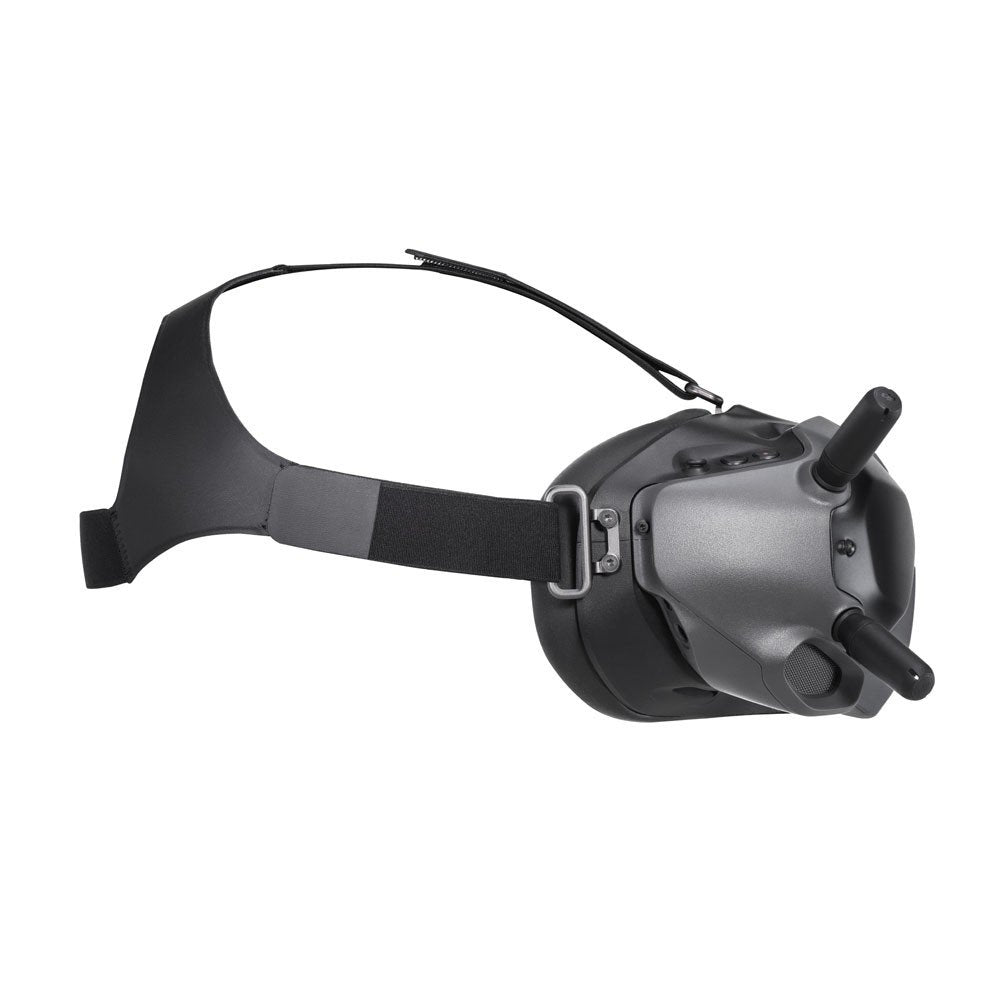

dji fpv goggles av in DJI FPV Goggles V2 – FlyFish RC

dji fpv goggles av in DJI FPV Goggles V2 – FlyFish RCThe DJI Digital HD FPV Goggles V2 builds on the stellar reputation of the V1 DJI FPV Goggles. By taking the best features of V1 and adding some new future proof tech to these V2's they are truly one of a kind, in performance and style. DJI has created and honed its digital FPV system to satisfy the demands of FPV drone pilots. Racing and freestyle drone pilots alike want the fastest response, lowest latency, and clearest video in their FPV system in

The DJI Digital HD FPV Goggles V2 builds on the stellar reputation of the V1 DJI FPV Goggles. By taking the best features of V1 and adding some new future-proof tech to these V2's they are truly one-of-a-kind, in performance and style. DJI has created and honed its digital FPV system to satisfy the demands of FPV drone pilots.

Racing and freestyle drone pilots alike want the fastest response, lowest latency, and clearest video in their FPV system in order to perform fast movements with the most accuracy. Analog video was the best way to achieve low latency and fast response, but the video was never very clear. And conversely, with digital, the video was clear and crisp, but there was a noticeable delay that many pilots couldn't live with - plus digital HD systems were bulky and cumbersome to put on your drone.

Well, all of that changed with DJI's entry to Digital HD, and now that has changed again with the release of DJI FPV Goggles V2. Crystal clear 810p 120fps (Low-Latency Mode) or 810p 60fps (HQ Mode) video directly to your goggles, with the lowest latency ever before on a digital HD system!

On top of that, get maximum transmission ranges of up to 4km with the built-in receiver! No need to spend additional money on an external receiver module.

Note: If you're having issues binding your goggles please visit this link.

Features
Minimum End-to-End Latency within 28ms
810p 144 FPS Digital High Definition Display
Focus Mode allocates most image bitrate for the center of the image where you need it most.
1800mAh Battery Included
Strong Anti-Interference
Maximum of 8 channels (5.8GHz)
4KM safe transmission range
Live stream broadcast
Audience function lets another DJI FPV Goggle tune in to your signal
Betaflight PID Tuning, more integration in the works
Onboard Recording
Video Playback
Engineered to be lighter and more comfortable
Compatible with eyeglasses

Specifications
DJI FPV Goggles V2

Dimensions:
202 × 126 × 110 mm (antennas included)
184 × 122 × 110 mm (antennas excluded)
Weight: 420g (Headband and antennas included)
Screen Size: 2x2"
Screen Resolution (Single Screen): 1440 × 810
Screen Refresh Rate: 144 Hz
Communication Frequency: 2.400 - 2.4835 GHz*; 5.725-5.850 GHz *Only supports 5.8Ghz when used with DJI FPV Air Unit
Transmitter Power (EIRP) :
2.400 - 2.4835 GHz FCC/MIC: ≤28.5 dBm; CE: ≤20 dBm; SRRC: ≤20 dBm; MIC: ≤20 dBm
5.725-5.850 GHz FCC/MIC: ≤31.5 dBm; CE: ≤14 dBm; SRRC: ≤19 dBm

Live View Mode: Low Latency Mode (810p/120fps) High-Quality Mode (810p/60fps)
Video Format: MP4 (Video format: H.264)
Supported Video Play Format: MP4, MOV, MKV (Video format: H.264; Audio format: AAC-LC, AAC-HE, AC-3, MP3)
Operating Temperature: 32° to 104° F (0° to 40° C)
Power Input: 7.4-17.6 V
FOV: Adjustable from 30° to 54°. Adjustable image size from 50%-100%
Interpupillary Distance Range: 58 -70 mm
Supported Storage Card: microSD cards with capacities of up to 256GB

DJI FPV Goggle Battery
DJI FPV Goggles Battery Capacity: 1800mAh
Voltage: 9 V (Max.)
Type: LIPO 2s
Charging Temperature: 0°C to 45°C
Energy: 18 Wh
Max Charging Power 10 W
Battery Life: Approx. 110 minutes (measured in an environment of 25°C at maximum brightness level)

Tips:
Avoid exposing the inside of the goggles to direct sunlight.
These goggles require the DJI FPV Air Unit or Caddx Vista/Nebula in order to work. However, using the DJI FPV Remote Controller is optional. The DJI Remote Controller is useful if you want to use their built-in Tx system.

Includes
1x DJI FPV Goggles V2 (inc. foam padding)
1x DJI FPV Goggles Battery
1x DJI FPV Goggles Power Cable (USB-C)
1x DIY FPV Goggles Antenna (Dual Band)
1x Headband
1x USB-C cable
